Attendance

Your TA will come around during discussion to check you in.

If you miss discussion for a good reason (such as sickness or a scheduling conflict), email cs61a@berkeley.edu within one week to receive attendance credit.

Visualizing SQL

The CS61A SQL Web Interpreter is a great tool for visualizing and debugging SQL statements!

To get started, visit code.cs61a.org and hit Start SQL interpreter on the launch screen.

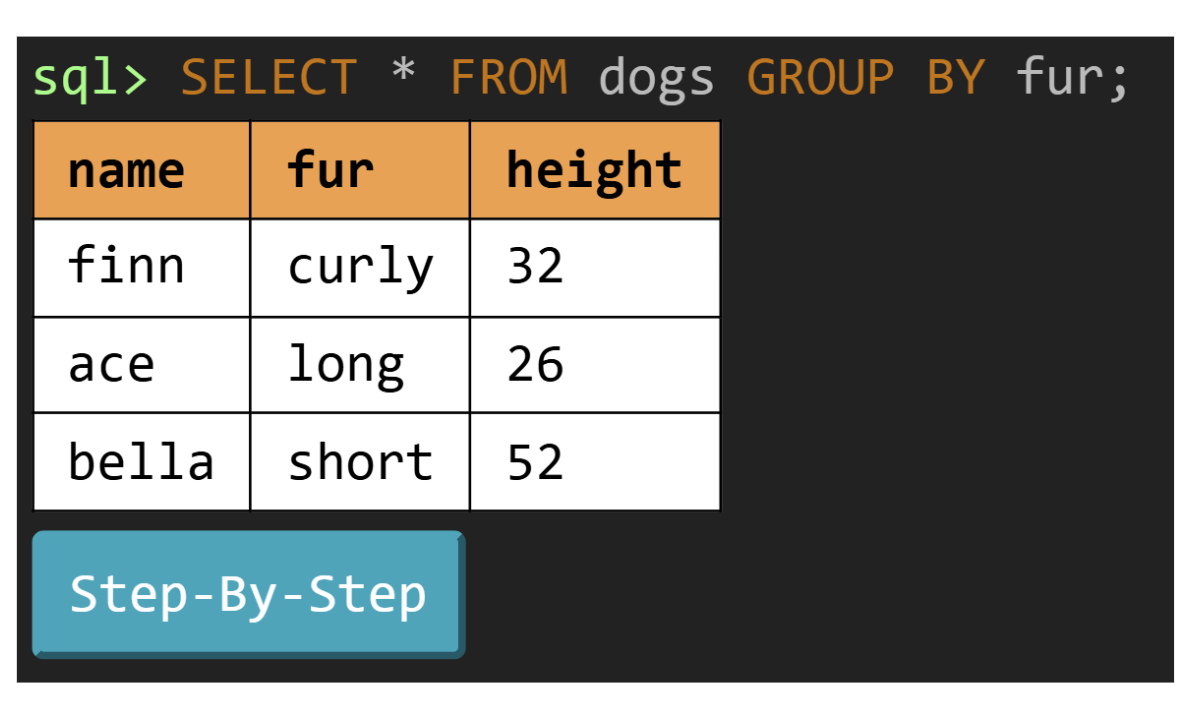

Most tables used in assignments are already available for use, so let's try to execute a SELECT statement:

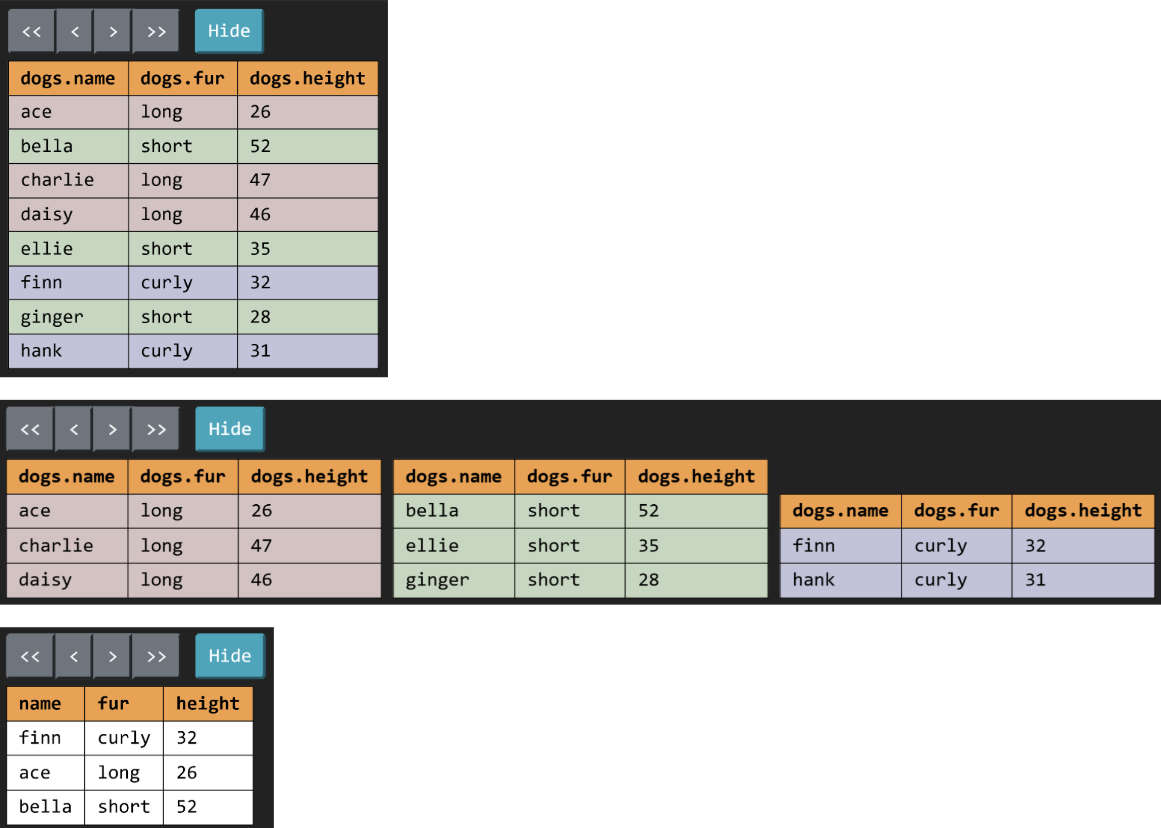

In addition to displaying a visual representation of the output table, the "Step-by-step" button lets us step through the SQL execution and visualize every transformation that takes place. For our example, clicking on the next arrow will produce the following visuals, demonstrating exactly how SQL is grouping our rows to form the final output!

SQL Basics

Example Table

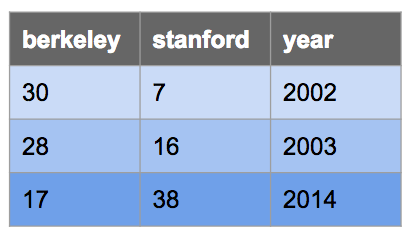

Here's a table called big_game used in the examples below, which records the scores for the Big Game each year. This table has three columns: berkeley, stanford, and year.

CREATE TABLE big_game (
    berkeley INTEGER, stanford INTEGER, year INTEGER);

INSERT INTO big_game (berkeley, stanford, year) VALUES
    (30, 7, 2002),
    (28, 16, 2003),
    (17, 38, 2014);

You can view it in sqlite like this:

sqlite> .mode column
sqlite> SELECT * FROM big_game;
berkeley  stanford  year
--------  --------  ----
30        7         2002
28        16        2003
17        38        2014

Selecting From Tables

Typically, we will create a new table from existing tables using a SELECT statement:

SELECT [columns] FROM [tables] WHERE [condition] ORDER BY [columns] LIMIT [limit];

Let's break down this statement:

• SELECT [columns] tells SQL that we want to include the given columns in our output table; [columns] is a comma-separated list of column names, and * can be used to select all columns
• FROM [table] tells SQL that the columns we want to select are from the given table
• WHERE [condition] filters the output table by only including rows whose values satisfy the given [condition], a boolean expression
• ORDER BY [columns] orders the rows in the output table by the given comma-separated list of columns; by default, values are sorted in ascending order (ASC), but you can use DESC to sort in descending order
• LIMIT [limit] limits the number of rows in the output table by the integer [limit]

Here are some examples:

Select all of Berkeley's scores from the big_game table, but only include scores from years past 2002:

sqlite> SELECT berkeley FROM big_game WHERE year > 2002;
28
17

Select the scores for both schools in years that Berkeley won:

sqlite> SELECT berkeley, stanford FROM big_game WHERE berkeley > stanford;
30|7
28|16

Select the years that Stanford scored more than 15 points:

sqlite> SELECT year FROM big_game WHERE stanford > 15;
2003
2014

SQL operators

Expressions in the SELECT, WHERE, and ORDER BY clauses can contain one or more of the following operators:

• comparison operators: =, >, <, <=, >=, <> or != ("not equal")
• boolean operators: AND, OR
• arithmetic operators: +, -, *, /
• concatenation operator: ||

Output the ratio of Berkeley's score to Stanford's score each year:

sqlite> select berkeley * 1.0 / stanford from big_game;
0.447368421052632
1.75
4.28571428571429

Output the sum of scores in years where both teams scored over 10 points:

sqlite> select berkeley + stanford from big_game where berkeley > 10 and stanford > 10;
55
44

Output a table with a single column and single row containing the value "hello world":

sqlite> SELECT "hello" || " " || "world";
hello world

Pizza Time

The pizzas table contains the names, opening, and closing hours of great pizza places in Berkeley. The meals table contains typical meal times (for college students). A pizza place is open for a meal if the meal time is at or within the open and close times.

CREATE TABLE pizzas (name TEXT, open INTEGER, close INTEGER);

INSERT INTO pizzas VALUES
  ("Artichoke", 12, 15),
  ("La Val's", 11, 22),
  ("Sliver", 11, 20),
  ("Cheeseboard", 16, 23),
  ("Emilia's", 13, 18);

CREATE TABLE meals (meal TEXT, time INTEGER);

INSERT INTO meals VALUES
  ("breakfast", 11),
  ("lunch", 13),
  ("dinner", 19),
  ("snack", 22);

Q1: Open Early

You'd like to have pizza before 13 o'clock (1pm). Create a opening table with the names of all pizza places that open before 13 o'clock, listed in reverse alphabetical order. To test what table your query outputs, press the green play button in 61A Code!

opening table:

-- Pizza places that open before 1pm in alphabetical order
CREATE TABLE opening AS
  SELECT name FROM pizzas WHERE open < 13 ORDER BY name DESC;

Q2: Study Session

You're planning to study at a pizza place from the moment it opens until 14 o'clock (2pm). Create a table study with two columns, the name of each pizza place and the duration of the study session you would have if you studied there (the difference between when it opens and 14 o'clock). For pizza places that are not open before 2pm, the duration should be zero. Order the rows by decreasing duration.

Hint: Use an expression of the form MAX(_, 0) to make sure a result is not below 0.

study table:

-- Pizza places and the duration of a study break that ends at 14 o'clock
CREATE TABLE study AS
  SELECT name, MAX(14 - open, 0) AS duration FROM pizzas ORDER BY duration DESC;

Q3: Late Night Snack

What's still open for a late night snack? Create a late table with one column named status that has a sentence describing the closing time of each pizza place that closes at or after snack time. Important: Don't use any numbers in your SQL query! Instead, use a join to compare each restaurant's closing time to the time of a snack. The rows may appear in any order.

late table:

The || operator in SQL concatenates two strings together, just like + in Python.

-- Pizza places that are open for late-night-snack time and when they close
CREATE TABLE late AS
  SELECT name || " closes at " || close AS status
  FROM pizzas JOIN meals
  ON time <= close
  WHERE meal="snack";

Q4: Double Pizza

If two meals are more than 6 hours apart, then there's nothing wrong with going to the same pizza place for both, right? Create a double table with three columns. The first column is the earlier meal, the second column is the later meal, and the name column is the name of a pizza place. Only include rows that describe two meals that are more than 6 hours apart and a pizza place that is open for both of the meals. The rows may appear in any order.

double table:

-- Two meals at the same place
CREATE TABLE double AS
  SELECT a.meal AS first, b.meal AS second, name
         FROM meals AS a
         JOIN meals AS b ON b.time > a.time + 6
         JOIN pizzas ON open <= a.time AND a.time <= close AND open <= b.time AND b.time <= close;

SQL Aggregation

Here's another example table, this time about flights:

CREATE TABLE flights (
    departure TEXT, arrival TEXT, price INTEGER);

INSERT INTO flights (departure, arrival, price) VALUES
    ('SFO', 'LAX', 97),
    ('SFO', 'AUH', 848),
    ('LAX', 'SLC', 115),
    ('SFO', 'PDX', 192),
    ('AUH', 'SEA', 932),
    ('SLC', 'PDX', 79),
    ('SFO', 'LAS', 40),
    ('SLC', 'LAX', 117),
    ('SEA', 'PDX', 32),
    ('SLC', 'SEA', 42),
    ('SFO', 'SLC', 97),
    ('LAS', 'SLC', 50),
    ('LAX', 'PDX', 89);

Applying an aggregate function such as MAX(column) combines the values from multiple rows into an output row.

By default, we combine the values of all rows in the table. For example, if we wanted to count the number of rows in our flights table, we could use:

sqlite> SELECT COUNT(*) from FLIGHTS;
13

What if we wanted to group together the values in similar rows and perform the aggregation operations within those groups? We use a GROUP BY clause.

Here's another example. For each unique departure, collect all of the rows having the same departure airport into a group. Then, select the price column and apply the MIN aggregation to recover the price of the cheapest departure from that group. The end result is a table of departure airports and the cheapest departing flight.

sqlite> SELECT departure, MIN(price) FROM flights GROUP BY departure;
departure  MIN(price)
---------  ----------
AUH        932
LAS        50
LAX        89
SEA        32
SFO        40
SLC        42

Just like how we can filter out rows with WHERE, we can also filter out groups with HAVING. Typically, a HAVING clause should use an aggregation function. Suppose we want to see all airports with at least two departures:

sqlite> SELECT departure FROM flights GROUP BY departure HAVING COUNT(*) >= 2;
departure
---------
LAX
SFO
SLC

Note that the COUNT(*) aggregate just counts the number of rows in each group. Say we want to count the number of distinct airports instead. Then, we could use the following query:

sqlite> SELECT COUNT(DISTINCT departure) AS destinations FROM flights;
destinations
------------
6

This enumerates all the different departure airports available in our flights table (in this case: SFO, LAX, AUH, SLC, SEA, and LAS).

Rooms

From the Spring 2023 final exam.

The finals table has columns hall (strings) and course (strings), and has rows for the lecture halls in which a course is holding its final exam.

The sizes table has columns room (strings) and seats (numbers), and has one row per unique room on campus containing the number of seats in that room. All lecture halls are rooms.

Q5: Total Seats

Create a table with two columns, course (strings) and total (numbers) that has a row for each course that uses at least two rooms for its final. Each row contains the name of the course and the total number of seats in final rooms for that course.

Your query should work correctly for any data that might appear in the finals and sizes table, but for the example data above the result should be:

61A|2400
61B|1700
61C|1200

CREATE TABLE finals AS
  SELECT "RSF" AS hall, "61A" as course UNION
  SELECT "Wheeler"    , "61A"           UNION
  SELECT "Pimentel"   , "61A"           UNION
  SELECT "Li Ka Shing", "61A"           UNION
  SELECT "RSF"        , "61B"           UNION
  SELECT "Wheeler"    , "61B"           UNION
  SELECT "Morgan"     , "61B"           UNION
  SELECT "Wheeler"    , "61C"           UNION
  SELECT "Pimentel"   , "61C"           UNION
  SELECT "Soda 306"   , "10"            UNION
  SELECT "RSF"        , "70";

CREATE TABLE sizes AS
  SELECT "RSF" AS room, 900 as seats    UNION
  SELECT "Wheeler"    , 700             UNION
  SELECT "Pimentel"   , 500             UNION
  SELECT "Li Ka Shing", 300             UNION
  SELECT "Morgan"     , 100             UNION
  SELECT "Soda 306"   , 80              UNION
  SELECT "Soda 310"   , 40              UNION
  SELECT "Soda 320"   , 30;

SELECT course, SUM(seats) AS total
  FROM finals JOIN sizes ON hall=room
  GROUP BY course HAVING COUNT(*) > 1;

Q6: Room Sharing

Write one select statement that creates a table with two columns, course (strings) and shared (numbers) that has a row for each course using at least one room that is also used by another course. Each row contains the name of the course and the total number of rooms for that course which are also used by another course.

COUNT(DISTINCT x) evaluates to the number of distinct values that appear in column x for a group. For example, SELECT COUNT(DISTINCT seats) from sizes; would output 8, because there are 9 rows in sizes, but two rows have 300 seats, so there are only 8 distinct values.

Your query should work correctly for any data that might appear in the finals and sizes table, but for the example below the result should be:

61A|3
61B|2
61C|2
70|1

Discussion Time: Talk about why the output table contains what it contains. Which are the two halls for 61B that are shared?

CREATE TABLE finals AS
  SELECT "RSF" AS hall, "61A" as course UNION
  SELECT "Wheeler"    , "61A"           UNION
  SELECT "Pimentel"   , "61A"           UNION
  SELECT "Li Ka Shing", "61A"           UNION
  SELECT "RSF"        , "61B"           UNION
  SELECT "Wheeler"    , "61B"           UNION
  SELECT "Morgan"     , "61B"           UNION
  SELECT "Wheeler"    , "61C"           UNION
  SELECT "Pimentel"   , "61C"           UNION
  SELECT "Soda 306"   , "10"            UNION
  SELECT "RSF"        , "70";

CREATE TABLE sizes AS
  SELECT "RSF" AS room, 900 as seats    UNION
  SELECT "Wheeler"    , 700             UNION
  SELECT "Pimentel"   , 500             UNION
  SELECT "Li Ka Shing", 300             UNION
  SELECT "Morgan"     , 100             UNION
  SELECT "Soda 306"   , 80              UNION
  SELECT "Soda 310"   , 40              UNION
  SELECT "Soda 320"   , 30;

SELECT a.course, COUNT(DISTINCT a.hall) AS shared
  FROM finals AS a JOIN finals AS b
  ON a.hall = b.hall AND a.course != b.course
  GROUP BY a.course;
